Upgrading CRE or RPE

Upgrading CRE or RPE

Upgrading CRE or RPE



















This document contains instructions showing you how to upgrade CRE/RPE.

 NOTE: It is HIGHLY recommended that you do a backup on the server if you are syncing your stations via direct connect.

If  your stations are synced via enterprise mode it is HIGHLY recommended that you perform a backup on all the stations.

TABLE OF CONTENTS



INSTALLING THE NEW PATCH                          8



Important Notes:



·     Before upgrading CRE to newer versions, perform a BACKUP of your database after settling your credit card transactions & clocking out all employees. In the event the database fails to convert properly, you will be able to recover your database by restoring the backup. To learn more about creating a backup of your database, please read the Backup Database Guide.
·      When upgrading from versions that are older than 12.60504, you must follow these steps to ensure a successful upgrade;



1.       Make a backup of your database
2.       Click here to download the 12.60504 patch & here to download the 12.60641 patch, extract these files to an accessible file location.
3.       Uninstall the currently installed patch
4.       Install the 12.60504 patch, start CRE & click Begin Conversion
5.       When the conversion has finished, run a check on the database and fix any issues it finds in the database. If issue still remain after running the fix, run the check a fix a second time. If any issues remain after that you can continue to upgrade to the next patch.


Backing up your database

To back up your database, start CRE/RPE and follow these steps. Recommend to backup files to external storage devices like flash drives, network drives or cloud storage.

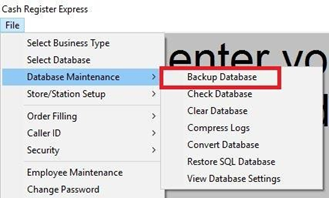

1.       Select File.

2.       Move your mouse over Database Maintenance.

3.       Select Backup Database.

4.       Provide the requested credentials.

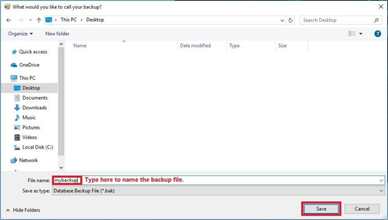

5.       Select the location where you would like your backup to be saved (e.g. desktop) and give it a unique name (e.g. corner_liquor_05_21_2009).

6.       Select Open.












7. The database has been backed up.

Now that you have the backup, store it in a safe place such as on a CD or a USB flash drive.

Checking Which Patch to Download

Depending on which version of CRE/RPE you are using will determine which patch to download:

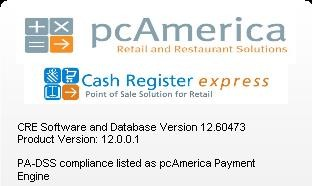

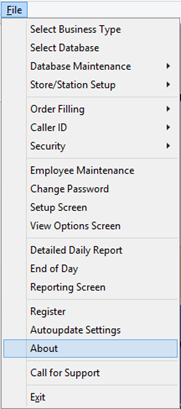

1. To check the version you are on, open the software and select File and then About.






If the Database Version is;

·         Lower than 12.60504, you’ll need to upgrade to 12.60504, then upgrade to 12.60641, then you can upgrade directly to the latest version of CRE. See the important notes section for details on the required steps for this type of upgrade.

·         If you are on any version that is newer 12.60641, click here to download the latest CRE patch.


Closing out the day
You will then want to do an end of day and a credit card settlement and be sure that all the other stations are out of the software











 1.       Select the Manager or Options button.

2.       Enter the administrator password (default: admin) where applicable.

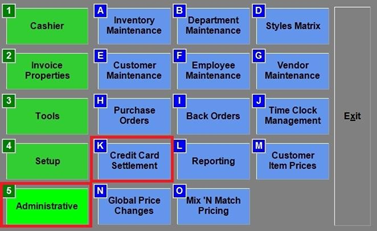

3. Select Administrative then Credit Card Settlement.

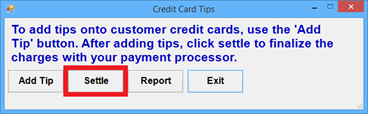

 4.       Select Settle to settle your credit cards. (Adding tips if necessary.)

5.       Select Exit to return to the Options Screen.

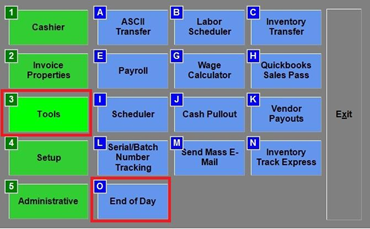

 6. Select Tools and then End of Day.

Complete an end of day to get a report of the summary of sales that occurred between now and the last time the end of day was performed.


Uninstall the old patch
Before patching CRE/RPE, the old patch must be removed. Follow these steps to do this.





1. Right click the Start Button in the bottom left hand corner of the screen.












2.   Select Control Panel.








3.       Scroll down to CRE QuickPatch v2 and select it. If you are unable to find it, skip the remainder of this section.

4.       Select Change/Remove.








5.   Select Yes when asked to confirm your decision.










6.   When notified that the patch has been uninstalled, select

Finish.


Installing the new patch

Obtain the new patch in the form of a file named cre.netqp.exe before following these steps.








 1. Right-click on cre.netqp.exe and select

Run as Administrator.

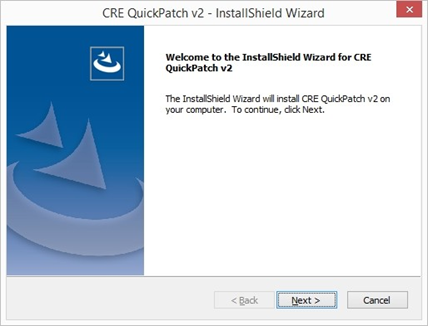

2. When the installer starts, select Next. Note: when installing versions of patches that are older than 12.7, if you are prompted to install SAP Crystal Reports runtime engine for .NET framework, click install. If the installation fails and you are prompted to continue with the installation, click continue. This occurs because Crystal reports is installed with the full installer and it already exists on your system.

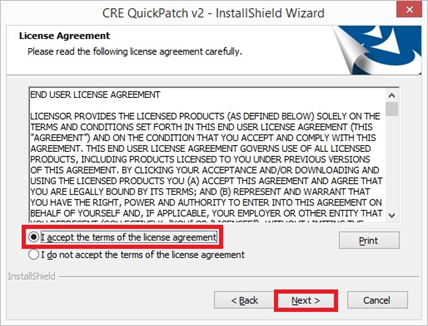

3. Select I accept the terms of the license agreement then select Next.

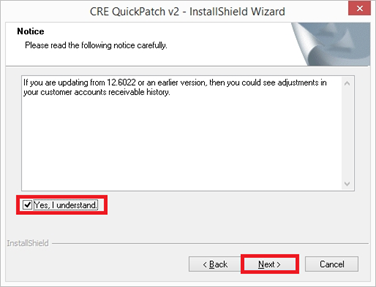

4. After reading the notice select Yes, I understand, then select Next.

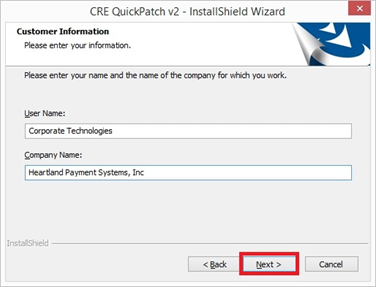

5.       Provide a user name and company name.

6.       Select Next.

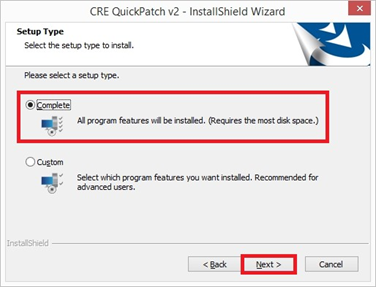

7. Select Complete then select Next.

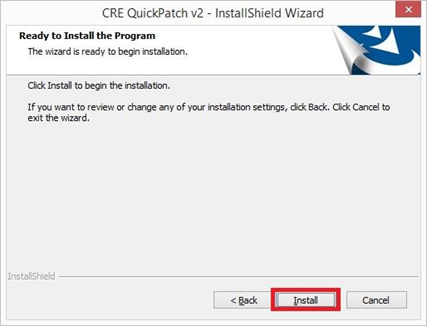

8. Select Install.

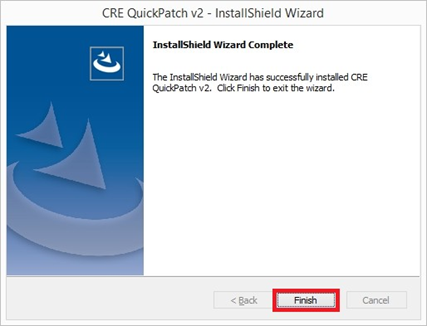

9. When notified that the patch has been installed, select Finish.


Converting your database

To complete the upgrade, start CRE/RPE and follow these steps.









 NOTE: Depending on the size of the database and the hardware specifications of the computer, the conversion may take a significant amount of time to complete. This can be a few minutes to over an hour. Once the check starts it cannot be stopped or interrupted. Doing so may result in an unusable database or loss of data. Ensure the computer has enough time to complete the check.

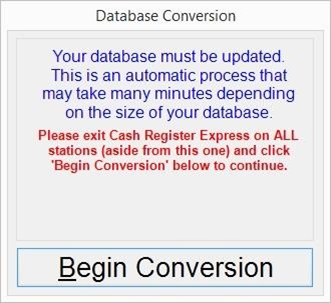

1. Select Begin Conversion.






 2.       If prompted if a database backup has been performed:

·         Selecting Yes will tell CRE that you have done a backup already and will continue the conversion as normal.

·         Selecting No will tell CRE that you need to do a database backup (see below).




3.       When prompted to backup your database select Yes to backup the database. You will be prompted for your credentials and then be asked to choose a location to save the backup. Selecting no will tell you to backup the database and will then exit the software.

·         You will want to select Yes at this window on your server. On the stations you can answere the previous question that you have backed up your database already.








 4. After your database has been converted, select Continue.


CRE/RPE has been upgraded! To verify that the version number has increased, select File (on the upper left-hand corner of the login screen) and then About.

Checking the Database
After a database has been converted, it is important to run a check on the database to resolve any issues with the database tables before using the software.







  1.       Select File

2.       Move the mouse over Database Maintenance

  3.       Select Check Database








 4. Enter the administrator password






NOTE: Depending on the size of the database and the hardware specifications of the computer, the Check may take a significant amount of time to complete. This can be a few minutes to over an hour. Once the check starts it cannot be stopped or interrupted. Doing so may result in an unusable database or loss of data. Ensure the computer has enough time to complete the check.

5. Select the Check Database button








6.       Select Fix and wait for the database fix to complete.

7.       Select close when the fix has finished.

If there are still errors in some of the tables, you can select fix again to attempt to fix it them. If errors still remain, they may be fixed after upgrading to newer versions of CRE.
